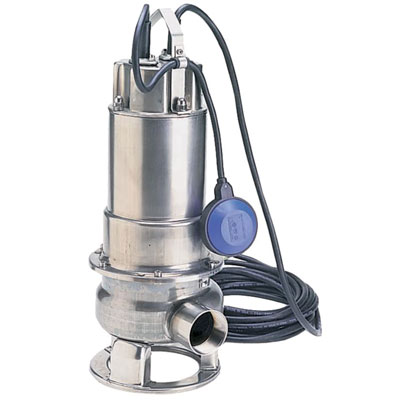

HONDA WSP100

1 HP electric submersible trash pump with automatic starting is constructed of 304 Stainless Steel with heavy duty impeller and has standard built in thermo automatic reset.

Features & Benefits

Specifications

  • 1 HP Electric Submersible Pump
  • Automatic Starting
  • Stainless Steel Case
  • Non-mercury Auto Float Switch
  • Built-in Thermal Auto Reset
  • 25-foot Heavy-Duty, 115V Cord
  • 1 Year Residential Warranty
  • 1 Year Commercial Warranty
Model Number WSP100AA
Pump Type Submersible Trash Pump
Starting Type Automatic
Casing Stainless Steel
Motor 1 HP
Voltage 115
Starting amps 47
Running amps 11.1
Duty Continuous
Motor Insulation Class F
Overhead Protection Built-In Thermal Automatic Reset
Discharge Type Side
Discharge Capacity 150 gal/min
Maximum Head 42 feet
Port Diameter (inches) 2.0 FNPT
Maximum psi 18 psi
Solids Handling 2.0"
Impeller Single Channel Stainless Steel
Seals Tandem Mechanical Carbon
Ceramic-upper
SIC/SIC-lower
Cord Length 25 feet
Cord Type Heavy-Duty 115V
Dimensions (W x H) 9.0" x 22.8"
Pump Diameter 9.0"
Dry Weight 41 lbs
Residential Warranty 1 year
Commercial Warranty 1 year
