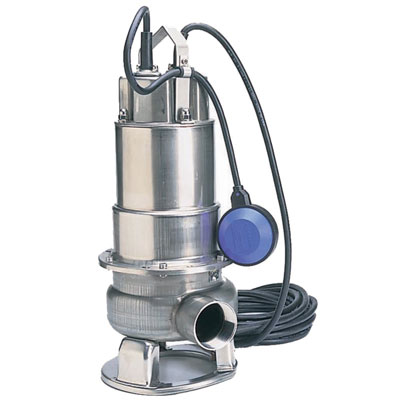

1/2 HP electric submersible trash pump with automatic starting is constructed of 304 Stainless Steel with heavy duty impeller and has standard built in thermo automatic reset.

Features & Benefits


  • 1/2 HP Electric Submersible Pump
  • Automatic Starting
  • Stainless Steel Case
  • Non-mercury Auto Float Switch
  • Built-in Thermal Auto Reset
  • 25-foot Heavy-Duty, 115V Cord
  • 1 Year Residential Warranty
  • 1 Year Commercial Warranty
Pump Type Submersible Trash Pump
Manual/Automatic Automatic Float Switch
Casing Stainless Steel
Motor 1/2 HP
Voltage 115
Starting amps 34
Running amps 8.3
Duty Continuous
Motor Insulation Class F
Overhead Protection Built-In Thermal Automatic Reset
Discharge Side
Discharge Capacity 110 gal/min
Maximum Head 32 feet
Port Diameter (inches) 2.0 FNPT
Maximum psi 14 psi
Solids Handling 2.0"
Impeller Single Channel Stainless Steel
Seals Tandem Mechanical Carbon
Cord Length 25 feet
Cord Type Heavy-Duty 115V
Dimensions (W x H) 9.0" x 21.5"
(the discharge port is attached to the side of the volute, therefore the width at the discharge port is larger than the pump diameter)
Pump Diameter 7.5"
Dry Weight 36 lbs
