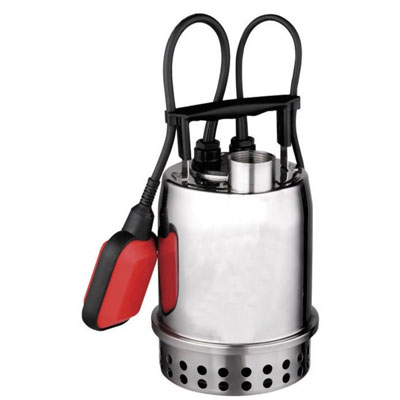

HONDA WSP33

1/3 HP electric submersible pump with automatic starting.

Features & Benefits

Specifications

  • 1/3 HP Electric Submersible Pump
  • Automatic Starting
  • Stainless Steel Case
  • Non-mercury Auto Float Switch
  • Built-in Thermal Auto Reset
  • 20-foot Heavy-Duty, 115V Cord
  • 1 Year Residential Warranty
  • 1 Year Commercial Warranty
Model Number WSP33K1AA
Pump Type Submersible Standard
Starting Type Automatic
Casing Stainless Steel
Motor 1/3 HP
Voltage 115
Starting amps 10
Running amps 4
Duty Continuous
Motor Insulation Class F
Overhead Protection Built-In Thermal Automatic Reset
Discharge Type Top
Discharge Capacity 40 gal/min
Maximum Head 23 feet
Port Diameter (inches) 1.25 FNPT
Maximum psi 10 psi
Solids Handling 0.375"
Impeller Thermo Plastic Noryl
Seals Single Carbon/Ceramic lower mechanical seal, rubber single lip upper seal
Cord Length 20 feet
Cord Type Heavy-Duty 115V
Dimensions (W x H) 6.4" x 10.3"
Pump Diameter 6.4"
Dry Weight 11 lbs
Residential Warranty 1 year
Commercial Warranty 1 year
