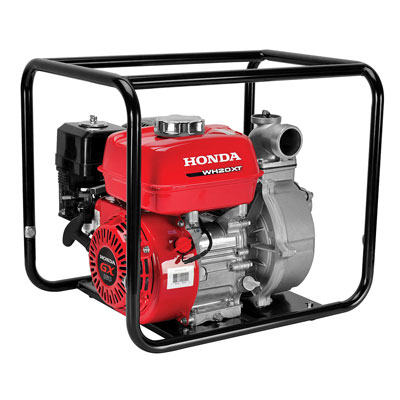

HONDA WH20

1.5 inch pump This high pressure pump is powered by the 5.5 HP GX series Industrial Engine. This pump offers exceptional performance when higher pressure is required in applications such as using sprinklers or a nozzle.

Features & Benefits

Specifications

  • Honda Overhead Valve Engine
  • High Output, High Pressure Pump
  • 71psi max
  • 2" Ports
  • Maximum Capacity of 132 Gallons per Minute
  • 2 Year Residential Warranty
  • 2 Year Commercial Engine & 3 Month Pump Component Warranty
Model Number WH20XTAF
Engine GX160
Displacement 163 cc
Bore and Stroke 2.7" x 1.8"
Compression Ratio 9.0:1
Oil Alert N/A
Pump Type High Pressure, Centrifugal, Self-Priming
Volute Rigid-Mounted Cast Iron
Impeller Cast Iron
Mechanical Seal (Pump Case / Impeller) Carbon / Ceramic
Priming Time 80 sec. at 16.4 ft.
Drive System Direct
Discharge Capacity 119 gals./min.
Suction Port Diameter 2" NPT
Discharge Port Diameter 2" NPT
Total Head Lift 148 ft.
Suction Head Lift 26 ft.
Maximum Pressure 64 psi
Solids Handling N/A
Dimensions 20.5" x 15.7" x 18.1"
Dry Weight 60 lbs
Fuel Capacity 0.82 gal
Run Time @ Max Discharge 1.5 hr
Strainer Part # 78325-YB7-720
Residential Warranty 3 years
Commerical Warranty 3 year
