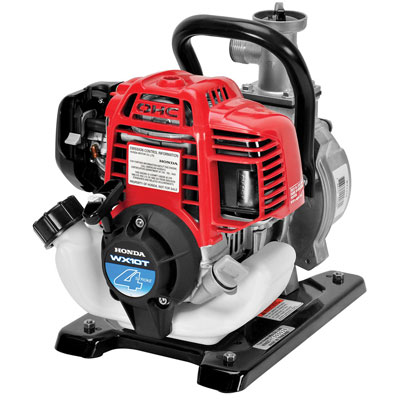

HONDA WX10 |
|
1 inch pump
This quiet operating, 4 cycle Honda powered water pump with 40 gallon per minute performance is an excellent choice for homeowners, gardeners and boat owners.
|
|
|
- Honda Mini 4-Stroke Engine
- Weighs only 15 lbs.
- Pumps up to 40 Gallons/Minute
- Suction Hose Included
- Strainer Included
- Garden Hose Coupler
- 2 Year Residential Warranty
- 1 Year Commercial Warranty
| Model Number |
WX10TA |
| Engine |
GX25 |
| Displacement |
25 cc |
| Bore and Stroke |
1.4" x 1.0" |
| Compression Ratio |
8.0:1 |
| Oil Alert |
N/A |
| Pump Type |
General Purpose Centrifugal Self-Priming |
| Volute |
Aluminum |
| Impeller |
Aluminum |
| Mechanical Seal (Pump case / impeller) |
Carbon/Ceramic |
| Priming Time |
80 sec. at 16.4 ft. |
| Drive System |
Direct |
| Discharge Capacity |
32 gals./min. |
| Suction Port Diameter |
1.0" NPT |
| Discharge Port Diameter |
1.0" NPT |
| Total Head Lift |
121 ft. |
| Suction Head Lift |
26 ft. |
| Maximum Pressure |
52 psi |
| Solids Handling |
N/A |
| Dimensions |
13.4" x 8.7" x 11.6" |
| Dry Weight |
13 lbs |
| Fuel Capacity |
0.56 qt |
| Run Time @ Max Discharge |
0.9 hr |
| Strainer Part # |
78325-YB0-711 |
| Residential Warranty |
2 years |
| Commerical Warranty |
1 year |
|
 |
|
 |
