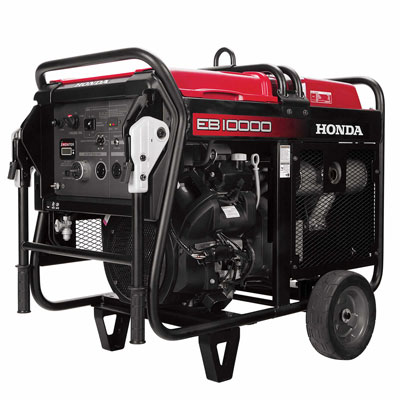

HONDA EB10000

NEW! The EB10000 has a compact, slim design that can be easily installed on the job site. A centralized exhaust mechanism creates a unique "hot" zone for exhaust and "cool" zone for operation and passage. This design is especially helpful when using multiple units, as they can be easily positioned so as not to impact each others' cooling ventilation.
The Honda EB10000 generator operates at a quiet noise leveló73 decibels at 7 meters (equivalent to the noise of a vacuum cleaner). This low noise level is achieved through a large muffler that includes a punching pipe, a perforated mechanism that allows for the smooth release of exhaust gas.

Features & Benefits

Specifications

  • 10000 watts, 120/250V
  • DAVR (Digital Automatic Voltage Regulator)
  • Electric Start
  • 7 outlets for easy connection of multiple tools
  • i-Monitor LCD readout for performance monitoring and service diagnosis
  • 3 year commercial/residential warranty
  • Hanger kit/lifting eye, Wheel Kit, Handles standard
  • Protected by Honda Oil Alert
Engine Honda GX630
Displacement 630cc
AC Output 120/240V 10000W max. (83.8/41.6A) 9000W rated (75/37.5A)
Receptacles 20A 125V GDCI Duplex (2), 30A 125V Locking Plug, 30A 125/250V Locking Plug, 50A 120/250V Locking Plug
DC Output N/A
Starting System Electric
Fuel Tank Capacity 8.1 gals.
Run Time per Tankful 4.6 hrs.@ rated load, 7.2 hrs. @ 1/2 load
Dimensions (L x W x H) 55.9" x 26.7" x 35.1"
Noise Level 73 dB @ rated load, 71 dB @ 1/2 load
Dry Weight 403 lbs.
Residential Warranty 3 Years
Commercial Warranty 3 Years
